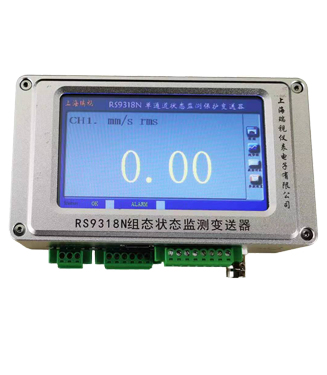

RS9318 configuration condition monitoring and protection transmitter realizes the measurement function of different monitoring conditions by changing the parameters of the transmitter through configuration, and can monitor and protect vibration acceleration, vibration velocity (rms,pk), shell vibration (absolute vibration), shaft vibration, shaft displacement, low frequency vibration velocity, thermal expansion, eccentricity and other conditions. The condition monitoring and protection device meets the requirements of low frequency (0.2-30Hz) and medium frequency (2.5Hz-5kHz) for users to choose. When the external key-phase eddy current sensor is connected, it can display the real-time waveform, pass-frequency vibration amplitude, rotating speed and 1X phase of each channel for fault diagnosis and analysis.

Main monitoring functions

■ Shaft vibration monitoring

■ Axis displacement monitoring

■ Acceleration monitoring

■ Speed monitoring

■ Monitoring of shell vibration (absolute vibration)

■ Differential expansion monitoring

■ Thermal expansion monitoring

■ Swing monitoring

■ Eccentricity monitoring

 Matching sensor

■ Eddy current sensor

■ Piezoelectric speed sensor

■ Low frequency piezoelectric speed sensor

■ Acceleration sensor

■ Magnetoelectric speed sensor

■ thermal expansion transmitter

The technical specification

■  field meter, 5.7 inch color touch screen

■ Meter with clock display and alarm time query function

■ Configurable alarm relay independent output or logical output

■ Meet low frequency 0.2Hz ~ 30HZ, or pass frequency 2.5Hz ~ 10KHZ

■ Meter provides sensor power supply:

-24VDC (current limiting of the power supply eddy current sensor is 20mA)

 +24VDC (constant current of the voltage inductor is 4-6mA)

■ Output one ndependent 4-20m signals (maximum load is 500 ω)

■ Provide one  independent buffered-original signal output (BUF) of the BNC head

■ Operating voltage: 24VDC
