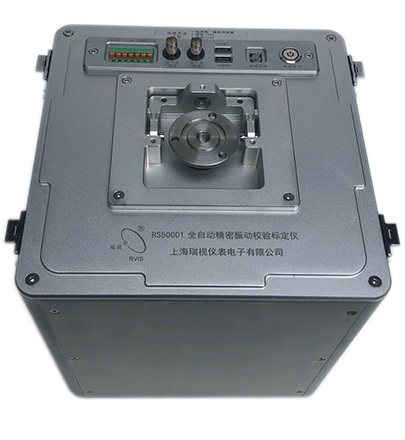

RS50001 instrument has five functions:

1. Verification and calibration of absolute vibration: Check and calibrate magnetoelectric speed, piezoelectric speed and acceleration sensors; Vibration speed, amplitude and acceleration system. Such as Bently9200, 330500, 330400; epro9268; CTC102、136; Schenck VS-069 / 169, VS-068 / 168, etc.

2. Verification and calibration of shaft vibration: Verify and calibrate the dynamic amplitude-frequency characteristics of eddy current sensor; Shaft vibration system. Dynamic calibration range: 0～500um.

3. Calibration and calibration of two-wire integrated vibration transmitter: Check and calibrate Bently177230;; MERTIX 5484E, ST6917, etc.

4. Transmitter verification and calibration: Check and calibrate the linear characteristics and sensitivity characteristics of the shaft displacement / vibration transmitter; Dynamic amplitude-frequency characteristics.

Bently990, 991; MX2034 of METRIX company, WK-142K and WK-142T of SHINKAWA company, etc

-0.6～0.6mm; -25～25mil; -1～+1mm; 0.5～2.0mm; 0.5～2.5mm; 0.5～3.5mm; 0.5～4.5mm.

Check the calibration probe specifications: Bently φ 5 ~ φ 50 mm probe; EPRO φ 8 ~ φ 32 mm probe, etc.;

5. Signal source:

Check and calibrate the tile vibration, vibration speed, acceleration, shaft vibration, shaft displacement and rotation speed system;

Two independent zero-crossing sine wave signal outputs: The frequency and amplitude of the signal can be configured, with the maximum output signal frequency of 20KHz and the maximum output signal amplitude of 10000mv. Two independent negative bias voltage sine wave signal outputs: The bias voltage range is: 0 ~-22 VDC,
