RS990 Eddy Current Vibration Transmitter
Your location:> Home> Products> Electric eddy current two-wire vibration transmitter> RS990 Eddy Current Vibration Transmitter
RS990 Eddy Current Vibration Transmitter

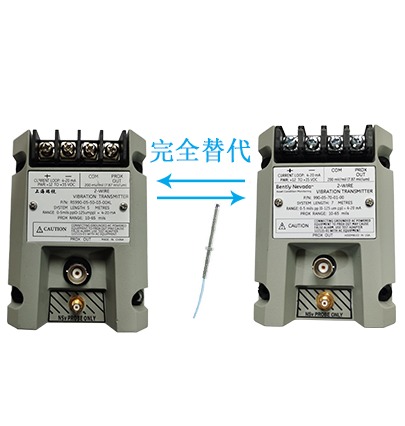

Substitute Bentley 990 Vibration Transmitter (NSV) .

Details

Product Details

■RS990 Eddy Current Sensor Vibration Transmitter completely substitutes Bently 990 vibration transmitter. It is mainly used for online measurement and protection of shaft vibration of rotating equipment such as steam turbine, water turbine, blower and air compressor. It can be directly connected with DCS and PLC (+24V power supply and 4-20mA output).

■ Adapt to the temperature difference range of-35 C ~+85 C

 Technical parameters of RS990 Eddy Current Vibration Transmitter are as follows

 ■ Power supply: +12V+35VDC

■ Frequency response: 5Hz6000Hz0-3dB

■ RS9000NSv probe and extension cable connected with REVIS are completely compatible with Bently 3300XL NSv probe and extension cable; RS9000XL probe and extension cable connected with Ruishi are completely compatible with Bently 3300XL probe and extension cable

■ Output mode: Two-wire system, direct output of 4~20mA, corresponding to full displacement range

■ Bently and Ruishi Φ5mm / Φ8mm probes can be interchanged at will

■ Measuring range: 0-75um p-p0-100um p-p0-125um p-p0-200um p-p0-300um p-p0-400um p-p

■ Load resistance: 500Ω
